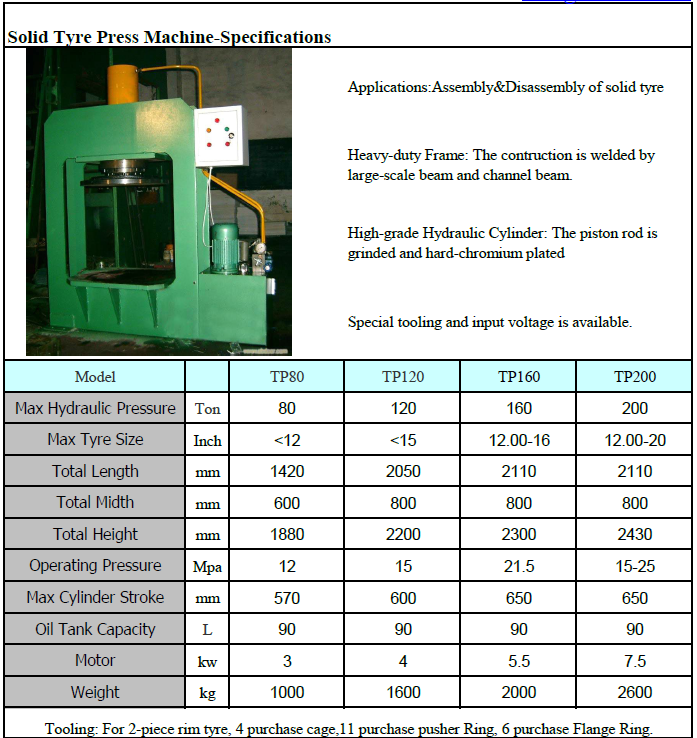

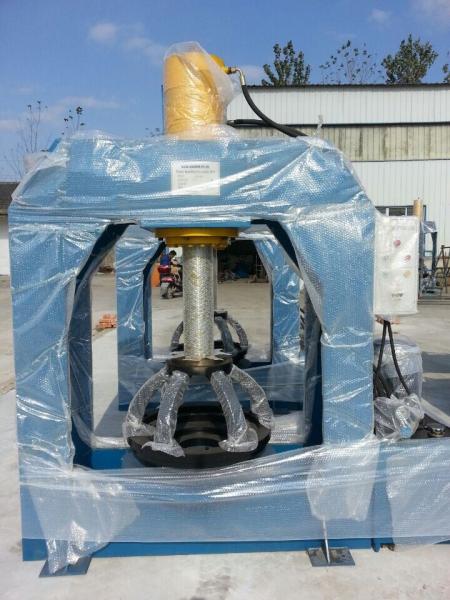

TIRE PRESS MACHINE FOR SOLID TYRES/OTR TIRES
Applications: Assembly&Disassembly of solid tyre, operating pressure from
80Ton to 300Ton, suitable for tyre size from 8inches to 25inches.
Heavy-duty Frame: The contruction is welded by large-scale beam and channel beam.
High-grade Hydraulic Cylinder: The piston rod is grinded and hard-chromium plated.
Special tooling and input voltage is available.
| Model | TP200-200TON | |
| Max Hydraulic Pressure | Ton | 200 |
| Max Tyre Size | Inch | 12.00-20.00 |
| Total Length | mm | 2110 |
| Total Midth | mm | 800 |
| Total Height | mm | 2430 |
| Operating Pressure | Mpa | 15.00-25.00 |
| Max Cylinder Stroke | mm | 650 |
| Oil Tank Capacity | L | 90 |
| Motor | kw | 7.5 |
| Weight | kg | 2600 |
Professional for amending or replacing the solid tires.
-Suitable for all kinds of Solid tires, some OTR tires.
-Easily Pull and Press into the Rim.
-3 Phases power supply for Max efficiency.
|
|
