LAKER AUTOPARTS CO.,LIMITED
9 Years
| Ask Lasest Price | |
| Brand Name : | LAKER |
| Certification : | CE |
| Model Number : | TP300 |
| Price : | FOB,CNF,CIF |
| Delivery Time : | 15 to 20 days after order confirmation |
| Payment Terms : | T/T at sight, L/C at sight |
| Supply Ability : | 500sets/month |

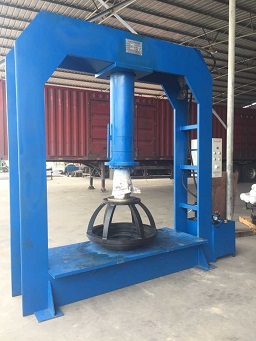

TIRE PRESS MACHINE FOR SOLID TYRES/OTR TIRES
Applications: Assembly&Disassembly of solid tyre, operating pressure from
80Ton to 300Ton, suitable for tyre size from 8inches to 25inches.
Heavy-duty Frame: The contruction is welded by large-scale beam and channel beam.
High-grade Hydraulic Cylinder: The piston rod is grinded and hard-chromium plated.
Special tooling and input voltage is available.
| Model | TP300 | |
| Max Hydraulic Pressure | Ton | 300 |
| Max Tyre Size | Inch | <25 |
| Total Length | mm | 2560 |
| Total Midth | mm | 850 |
| Total Height | mm | 3400 |
| Operating Pressure | Mpa | 15-35 |
| Max Cylinder Stroke | mm | 1800 |
| Oil Tank Capacity | L | 90 |
| Motor | kw | 11 |
| Weight | kg | 3000 |
|
|
