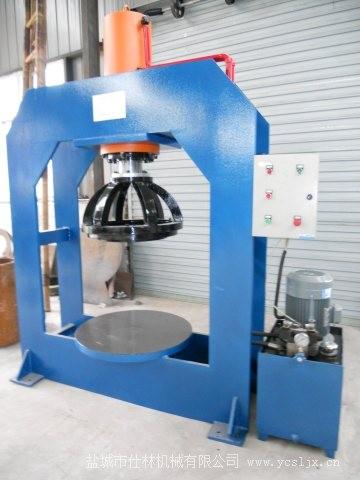

TIRE PRESS MACHINE FOR SOLID TYRES/OTR TIRES
Applications: Assembly&Disassembly of solid tyre, operating pressure from
80Ton to 300Ton, suitable for tyre size from 8inches to 25inches.
Heavy-duty Frame: The contruction is welded by large-scale beam and channel beam.
High-grade Hydraulic Cylinder: The piston rod is grinded and hard-chromium plated.
Special tooling and input voltage is available.
| Model | TP120 | |
| Max Hydraulic Pressure | Ton | 120 |
| Max Tyre Size | Inch | <15.00 |
| Total Length | mm | 2050 |
| Total Midth | mm | 800 |
| Total Height | mm | 2200 |
| Operating Pressure | Mpa | 15.00 |
| Max Cylinder Stroke | mm | 600 |
| Oil Tank Capacity | L | 90 |
| Motor | kw | 4 |
| Weight | kg | 1600 |
Professional for amending or replacing the solid tires.
-Suitable for all kinds of Solid tires, some OTR tires.
-Easily Pull and Press into the Rim.
-3 Phases power supply for Max efficiency.
|
|
