1.Features

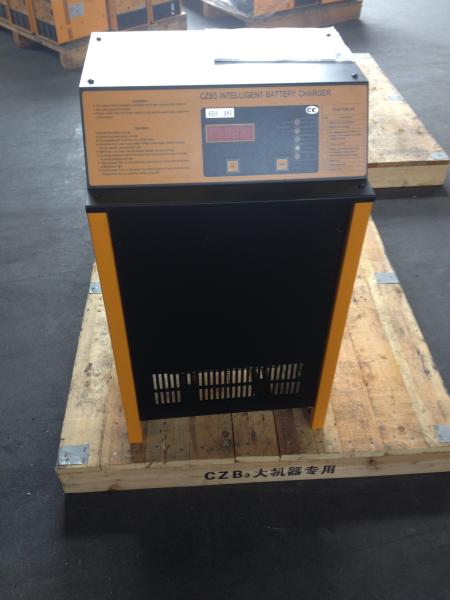

CZB5Ｃ Series Intelligent Charger is the organic combination of leakage transformer, technology of Silicon-controlled rectifier and Microcomputer Control. This device could optimize Wsa+Pulse charging characteristic curve. As charge voltage of battery increases, charge current decreases automatically.

Pulse charge would be performed before gas emissions or in late stage of recharge. On the premise of guarantee adequate battery power, this device would lower greatly internal temperature

and reduce gas emissions of battery, prolong the life of battery effectively and raise the charging

efficiency eventually.

The whole product has simple structure, convenient operation, complete functions and high efficiency.

2. Applications

This device would be applicable to recharge of lead-acid batteries which could be used in

various electric vehicle such as power pallet trucks, fork-lift truck, lift truck, electronic tour bus.

3.Operating conditions

(1)No higher than 2000 meters in altitude.

(2)Ambient temperature between 10 and 40 degrees C.

(3)Relative humidity not exceed 85% for conditions of ambient temperature around 20℃ ±5℃.

(4)Store in a place free from conductive dust & the risk of explosion.

(5)Do not store in harmful atmosphere such as corrosive gas, insulating gas, steam.

(6)Store in a place free from rain & snow

(7)Deviation from vertical shall be less than 5 degrees. Working situation without violent vibration and striking.
